How To Unbrick Android Phone Using SP-Flash Tools

3:10 am 1
How To Unbrick Android Phone Using SP-Flash Tools
Have you damage your handheld device software? Do you want to fix it and don`t know how? This simple and effective method will teach you how to unbrick android phones using Sp-flash tools

Requirement

* A PC
* USB Cord
* Click here to download and Manually install VCOM drivers on your PC
* Ensure there's an SD card in the phone you wish to flash the files to
* Scatter file + files to be flashed Click here to see how to make an MTK Backup).
* Download SP Flash tool ( Version 5.x  )

Note
If you get any error in SP Flash tool or the phone still didn't work after flashing, I made a list of SP Flash Tool errors, their meanings and how to resolve them click here to see.

Procedure
  • Remove the battery from the phone and slot it back in without booting the phone (If the battery is inbuilt then simply switch if off). Also, ensure there's a formatted SD card in the phone (if there's an SD card slot)
  • Launch SP Flash Tool as Administrator

How-To-Unbrick-Android-Phone-Using-SP-Flash-Tools
  • Click on Scatter-loading by the right
How-To-Unbrick-Android-Phone-Using-SP-Flash-Tools

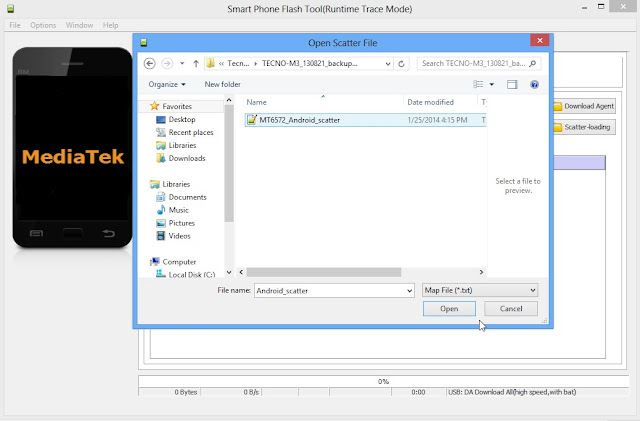

  •  In the window that pops up, select the scatter file for your phone model then click Open (scatter file is a text file with the word "scatter" in its name
How-To-Unbrick-Android-Phone-Using-SP-Flash-Tools
  •  A list with ticked boxes should appear in SP flash tool (preloader, mbr, ebr etc)
  • Step a,b,c,d,e,f

These steps is only for when you wish to format the phone. Skip if you don't wish to format

  • a. Click Format at the top
  • b. After clicking Format, a dialogue box will pop up, ensure that 'Auto Format Flash' and 'Format whole flash without Boot-loader' are selected
  • c. Click OK, Stop should now be red or green in color
  • d. Connect the switched off phone (with battery inside) to the PC via USB cord
  • e. A progress bar should load till you get a 'Success' message (green circle with OK)
  • f. Disconnect the phone from PC
  • . Uncheck the box in front of any item you do not wish to flash
How-To-Unbrick-Android-Phone-Using-SP-Flash-Tools
  • To manually load an item that doesn't automatically get ticked after loading the scatter file, tick the box in front of that item then double-click its Location and select the corresponding file in the window that pops up

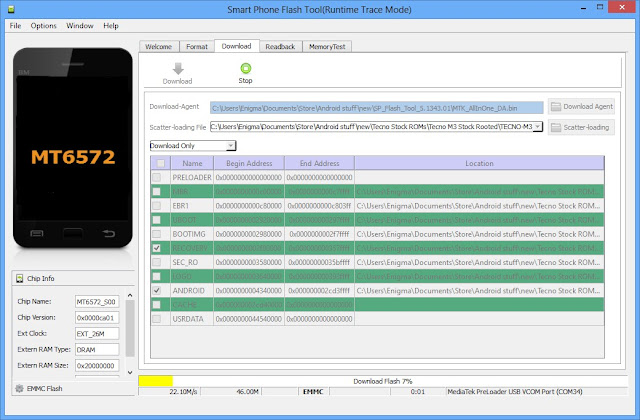

  • Once the file(s) you wish to flash is (are) ticked, click Download (with an arrow above it)
How-To-Unbrick-Android-Phone-Using-SP-Flash-Tools
  • Stop should now be prominent while other options should be grayed out
  • Connect the switched off phone (with battery inside) to the PC via USB cord
  • A progress bar should start running.
How-To-Unbrick-Android-Phone-Using-SP-Flash-Tools
  • Wait till you get a Success message (green circle with OK), do not interrupt before then
  •  Disconnect the phone, remove the battery for 15 seconds (if removable), slot it back in then power up the phone
  • Ensure to do a factory reset in recovery mode to clear any errors
